Stainless steel products

Stainless steel sheets

2B / BA / 1D


Surfaces

Grinding up to 20 mm thickness | grid 36 – grid 600 | brushed / duplo


Material grades

430 | 441 | 304 | 321 | 316 Ti | 316 L


Dimensions

1000 x 2000 mm

1000 x 3000 mm
1000 x 4000 mm

1250 x 2500 mm
1250 x 3000 mm
1250 x 4000 mm

1500 x 3000 mm
1500 x 4000 mm
2000 x 4000 mm


Maximum length

4000 mm


Thickness

0,30 mm – 20,00 mm


Surfaces

mirror polished No.8 | marbled | check | leather | linen | rhombus | mandorla


Mirror polished No.8


Marbled


Checks


Leather


Linen


Rhombus


Mandorla

Embossed stainless steel sheets

CS 5


Surfaces

BA (bright annealed), brushed
other surfaces on request


Grades

1.4301,
other grades on request


Dimensions

1000 x 2000 mm
1250 x 2500 mm
1500 x 3000 mm


Maximum length

4000 mm


Thickness

0,5 – 2,00 mm
thinner thicknesses on request


Application range
  • Construction of packaging machines
  • Store fixture
  • Elevator construction

CS 6


Surfaces

BA (bright annealed), brushed
other surfaces on request


Grades

1.4301,
other grades on request


Dimensions

1000 x 2000 mm
1250 x 2500 mm
1500 x 3000 mm


Maximum length

4000 mm


Thickness

0,8 – 2,00 mm
thinner thicknesses on request


Application range
  • Construction of packaging machines
  • Store fixture
  • Elevator construction

CS 7


Surfaces

BA (bright annealed), brushed
other surfaces on request


Grades

1.4301,
other grades on request


Dimensions

1000 x 2000 mm
1250 x 2500 mm
1500 x 3000 mm


Maximum length

4000 mm


Thickness

0,8 – 2,00 mm
thinner thicknesses on request


Application range
  • Construction of packaging machines
  • Store fixture
  • Elevator construction

CS 8


Surfaces

grinded, select: embossed


Grades

1.4301,
other grades on request


Dimensions

1000 x 2000 mm
1250 x 2500 mm
1500 x 3000 mm


Maximum length

4000 mm


Thickness

0,8 – 2,00 mm
thinner thicknesseses on request

Embossed stainless steel plates with slip resistance

CS 5


Slip-resistance-grade

R11


Surfaces

Grinded in length direction / Grid 80 / Laserfoil


Grades

1.4301, other grades on request


Dimensions

1000 x 2000 mm
1250 x 2500 mm
1500 x 3000 mm


Maximum length

4000 mm


Thickness

0,8 – 2,00 mm

thinner thicknesses on request

Possibly small differences from this information depending on the thickness and have to be accepted.


Application range
  • Cooling chambers
  • Industrial floors
  • Stairs surfaces
  • General building industry

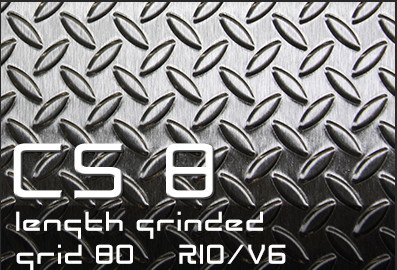

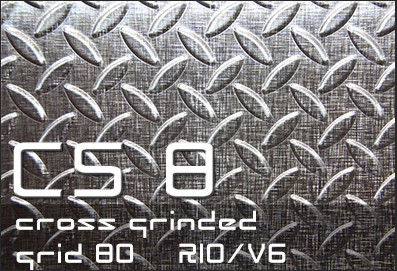

CS 8


Slip-resistance-grade

R10


Displacement-coefficient

V6


Surfaces

Grinded in length direction / Grid 80 / Laserfoil


Grades

1.4301,
other grades on request


Dimensions

1000 x 2000 mm
1250 x 2500 mm
1500 x 3000 mm


Maximum length

4000 mm


Thickness

0,8 – 2,00 mm

thinner thicknesses on request

Possibly small differences from this information depending on the thickness and have to be accepted.


Application range
  • Cooling chambers
  • Industrial floors
  • Stairs surfaces
  • General building industry

CS 8


Slip-resistance-grade

R12


Displacement-coefficient

V6


Surfaces

Cross grinded / Grid 36 / Laserfoil


Grades

1.4301,
other grades on request


Dimensions

1000 x 2000 mm
1250 x 2500 mm
1500 x 3000 mm


Maximum length

4000 mm


Thickness

0,8 – 2,00 mm
thinner thickness on request

Possibly small differences from this information depending on the thickness and have to be accepted.


Application range
  • Cooling chambers
  • Industrial floors
  • Stairs surfaces
  • General building industry
